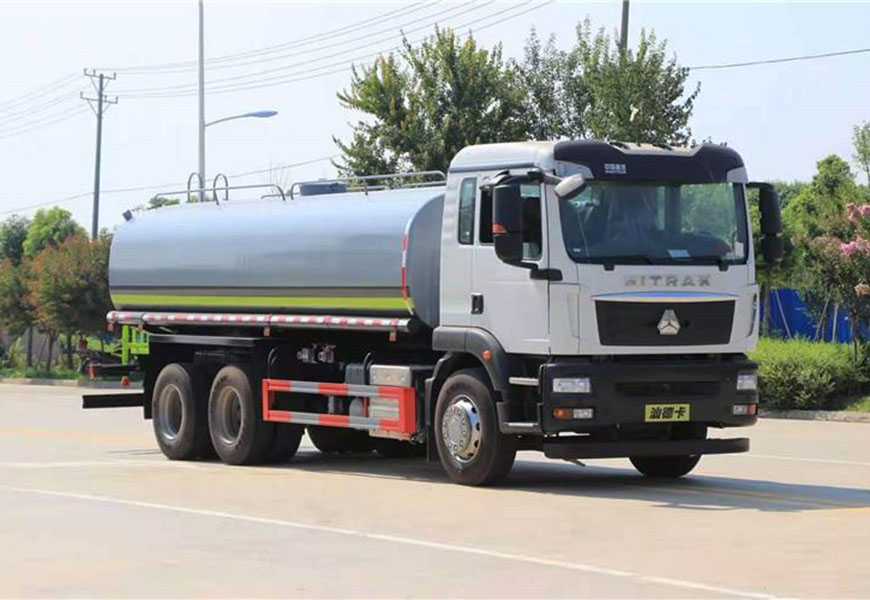

Sinotruk Shandeka 20-ton rear eight-wheel National VI sprinkler truck
Fast Delivery
12-16 Weeks
12-16 Weeks
5-Year Warranty
Comprehensive
Comprehensive
24/7 Support
Dedicated Team
Dedicated Team
Product Parameters
| Molding technical parameters | |||
| Structure name | Shande Cards | External model | ZZ5256XXYN504GF1 |
| Number of axes | 3 | Number of tires | 10 |
| Wheelbase (mm) | 4300+1350 | tire | 11.00R20 steel radial tire |
| Exemption/Environmental Protection Announcement | have | Fuel types | nickel |
| Emission standards | National VI | engine | Weichai |
| Recent Configuration | |||
| Exterior configuration: |
Sinotruk Shandeka rear dual-axle water sprinkler truck; G5-M cab; 310 hp (optional 340 hp) engine; 10 axles + HW50 flange-type PTO; H653 self-adjusting boom front axle (drum); MAT16ZG self-adjusting boom dual rear axle (drum); gear ratio 4.8; double-layer frame (8+5/280); Bosch steering gear; standard exhaust system; ABS; high-mounted protective bar (all-metal); 11.00R20 steel wire tires; 300L fuel tank; rotary PTO; terminal emission monitoring device; optional reversing buzzer; optional rear towing hook; wheelbase 4300+1350. |
||
| Upper body configuration: | The tank has a volume of 20 cubic meters and is made of 5mm high-quality carbon steel plate (stainless steel optional). It features a self-priming water pump with a flow plate inside the tank, a large-scale power truck water pump, and self-priming and self-draining functions. It includes pneumatic spray control, front spray, rear spray, side spray, interface, self-flow valve, high-level sprinkler, water cannon, and a rear working platform. The water cannon can rotate 360 degrees, with a fire-fighting range of 30 meters, continuously adjustable to a straight jet, heavy rain, light rain, and mist. The vertical suction lift is ≥7 meters, and the spray width is ≥14-16 meters. Other manufacturers' standard configurations are also available. | ||
| Optional configuration: | The water spray truck can be equipped with a remote fog cannon, snowplow, automatic water cannon, universal nozzle, solenoid valve, pneumatic valve, visual operating system, external power, chemical tank, etc., so that it can achieve multiple functions in one vehicle. | ||
| Scope of application: | Various nozzles are used for washing trees, green belts, lawns, roads, factory and mining construction sites, and high-rise buildings. Water trucks feature front spraying, rear spraying, side spraying, and high-pressure water cannons. Functions include watering, dust suppression, pesticide spraying, and guardrail washing. They are currently widely used in sanitation services in towns and cities. | ||
