National VI emission standard Jiefang J6-15 ton water sprinkler truck
Fast Delivery
12-16 Weeks
12-16 Weeks
5-Year Warranty
Comprehensive
Comprehensive
24/7 Support
Dedicated Team
Dedicated Team
Product Parameters
| Vehicle technical parameters |
| Chassis technical parameters | |||
| Chassis Name | Liberation brand | Chassis Model | CA1180P62K1L2A1E6Z |
| Number of axes | 2 | Number of tires | 6 |
| Wheelbase (mm) | 4500, 4700 | tire | 10.00R20 steel wire tire |
| Exemption/Environmental Protection Announcement | have | Fuel types | diesel fuel |
| Emission standards | National VI | Engine Model | Dachai 220 horsepower |
| Vehicle Configuration | |||
| Chassis configuration: |

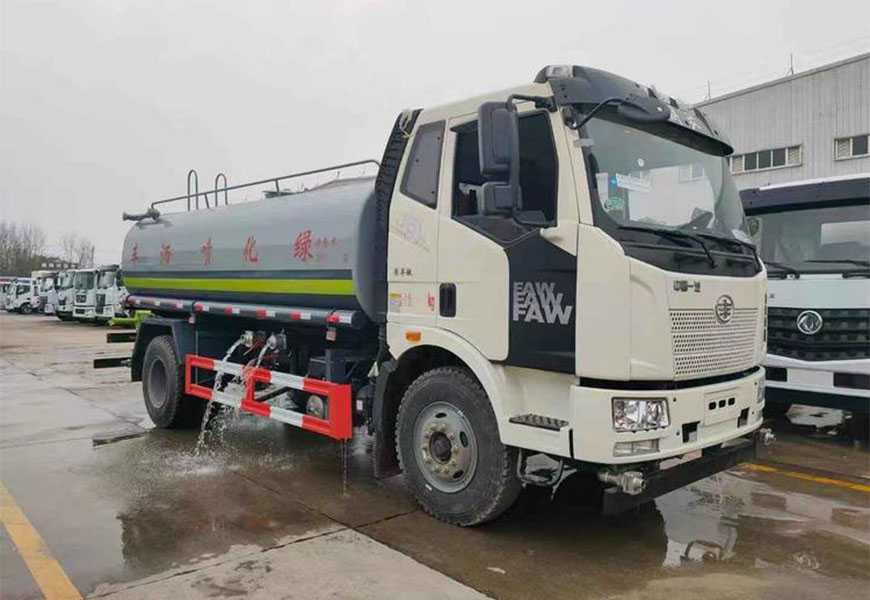

The Jiefang J6L water sprinkler truck, meeting China VI emission standards, features a J6L semi-floating flat-top small extended cab, a 4500mm wheelbase, a 220hp Dachai engine, an 8-speed Shaanxi Gear transmission, 10.00R20 steel radial tires, and a 9-ton rear axle. It is equipped with a mechanically damped seat, a single-DIN Beidou-compatible vehicle system, a middle seat, automatic air conditioning, a front underrun protection device, steel bumpers, and a manual hydraulic lifting device. |
||
| Upper body configuration: | The tank has an actual capacity of 15 tons. The tank body is made of high-quality carbon steel plate from Wuhan Iron and Steel Group. The tank is elliptical or square, and the lower end of the internal partition has through holes for wave protection. It features front and rear spraying, side spraying (which becomes a side shower after changing the nozzle), a rear-mounted work platform (with steps and safety railings on all sides), and a high-pressure water cannon (which can rotate 360° and be adjusted to a columnar shape). It is equipped with a high-quality dedicated water pump, power take-off, debris filter, and a national standard universal fire hydrant interface (for adding water through fire hydrants). | ||
| Optional configuration: | Air conditioning can be added, and optional 30-meter/40-meter mist cannons can be installed. The long-range spraying system of the spraying and dust suppression truck can be used to spray and reduce dust in squares and docks, and regulate air humidity; it can also be used in mining areas, demolition sites, and coal yards. | ||
