| Vehicle technical parameters |

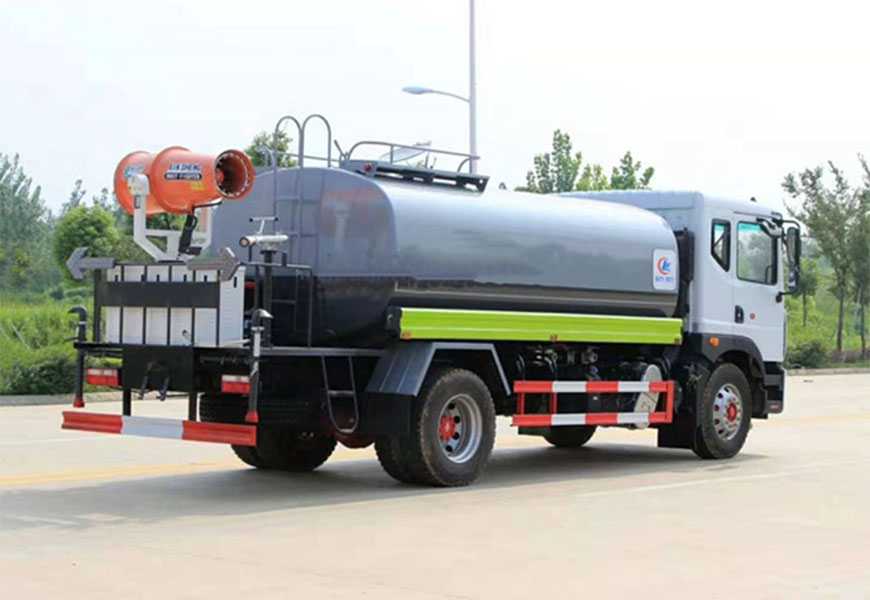

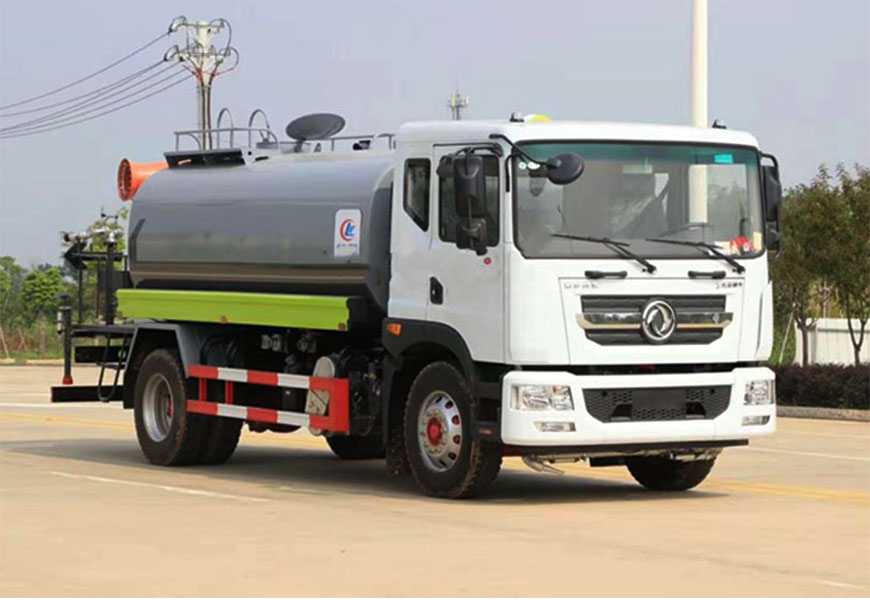

| Vehicle Model | CLW5182GPSD6 | Product Name | Dongfeng Dolica D9 Fog Cannon Truck |
| Tank volume | 15 square | Sprinkler width | 14 meters |
| Fog cannon range | 30-50 meters | Vertical suction range | 6 meters |
| Total mass (kg) | 18000kg | Rated load capacity (Kg) | 10555, 10490 kg |
| Curb weight (kg) | 7315kg | External dimensions (mm) | 8210×2500×3200mm |
| Chassis technical parameters | |||
| Chassis Name | Dongfeng brand | Chassis Model | EQ1185LJ9CDE |
| Passenger capacity (persons) | 3 people | Number of tires | 6 |
| Wheelbase (mm) | 3950/4500mm | Tire specifications | 295/80R22.5 |
| Exemption/Environmental Protection Announcement | have | Fuel types | diesel fuel |
| Emission standards | National VI | Engine Model | Yuchai 200/Cummins 210 |
| Model advantages | |||
| Vehicle advantages: | The Dongfeng D9 has a spacious cab with a more user-friendly design. The front panel of the cab can be flipped up, making it easy to inspect and maintain the air conditioning system, windshield washer fluid tank, and other components. The interior is simple, the chassis is solid, and the engine is powerful. | ||
| Chassis configuration: |
Built on the Dongfeng Dolica D9 National VI original chassis, featuring a one-and-a-half-row hydraulically tilting luxury cab. National VI engines available: Yuchai 200hp/Cummins 195hp/Cummins 210hp/Cummins 230hp, with turbocharged engines (available). Wheelbase 3950mm. Equipped with a Dongfeng 6-speed gearbox/Fast 8-speed gearbox with high and low speeds, air conditioning, electric windows, central locking, power steering, air brakes, air-operated handbrake, ABS, 1000R20 steel radial tires/275/80R22.5 tubeless tires/295/80R22.5 tubeless tires. Features include automatic brake adjustment arm, warning triangle, splash guard, headlight adjustment, warning triangle, and reflective vest. |
||
| Upper body configuration: |
The tank is made of national standard Q235 carbon steel plate, and can be equipped with 30-meter, 40-meter, and 50-meter small and medium-sized fog cannons. The tank body of the fog cannon truck is formed in one piece using machine pressing technology, and advanced spinning and tank wrapping processes ensure the precision and aesthetics of the tank manufacturing. The tank body is 4mm thick, with 5mm thickened front and rear end caps. The actual tank volume is 13-15 cubic meters (13-15 tons). It features a unique baking paint process, with multiple layers of primer for corrosion and rust prevention, and topcoat spraying. It is fully functional, equipped with front spray, rear spray, side spray, and greening cannons. It uses a high-quality water pump, a rationally designed water pipeline, and a pneumatic power take-off, resulting in strong operating capabilities. It can be equipped with gasoline or diesel generator sets, and the fog cannon spraying distance is optional from 30-50 meters, making it suitable for a wide range of applications.
|
||
| Scope of application: | Suitable for road washing and maintenance, construction in factories and mines, high-rise building washing, and landscaping watering, it has functions such as sprinkling water, dust suppression, high and low level spraying, pesticide spraying, guardrail washing, and water transportation. | ||
| After-sales service: | With 1,300 after-sales service outlets nationwide, we provide comprehensive service and ensure your peace of mind regarding after-sales support! | ||
| Quality Assurance: |
Big brand, high configuration, good service |
||
